A collection room is a deliberately lit, deliberately framed space built to show something you own — cars, art, books, instruments — as part of the house rather than stored away from it. The design work comes down to three things: the sightline that frames it, the lighting that reveals it, and the structure and conditioning behind it. Settle those in schematic design and the room becomes the best moment in the house. Settle them late and you are cutting into finished walls.
Key Takeaways
- Treat the collection room as a view, not a closet — choose the sightline from the entry, stair, or hall before you place walls.
- A gallery garage splits into a display half and a service half; the lift, drain, and storage wall stay out of the frame.
- Ceiling height, slab flatness, and beam locations are schematic-design decisions, not finish-out decisions.
- Lighting inverts the normal formula: low ambient, narrow-beam high-CRI accent, fixtures hidden in slots and coves.
- Anything conditioned differently from the rest of the house needs its own envelope, vapor control, and equipment closet on the plan.
Why Collections Moved Into the Floor Plan
The old rule was to hide the good things — cars behind a roll-up door, art in a hallway nobody used, books in a spare bedroom. That has flipped. Clients now ask us to make the collection the thing you see when you walk in, and it changes how the plan is shaped. A glazed garage wall becomes the view down the mudroom hall. A double-height book wall becomes the spine of the stair.
The logic is the same one we use for a fireplace or a sculptural stair: give the object a frame, quiet everything around it, and light it better than the room it sits in. The collection is the focal point; the architecture steps back so it can be.

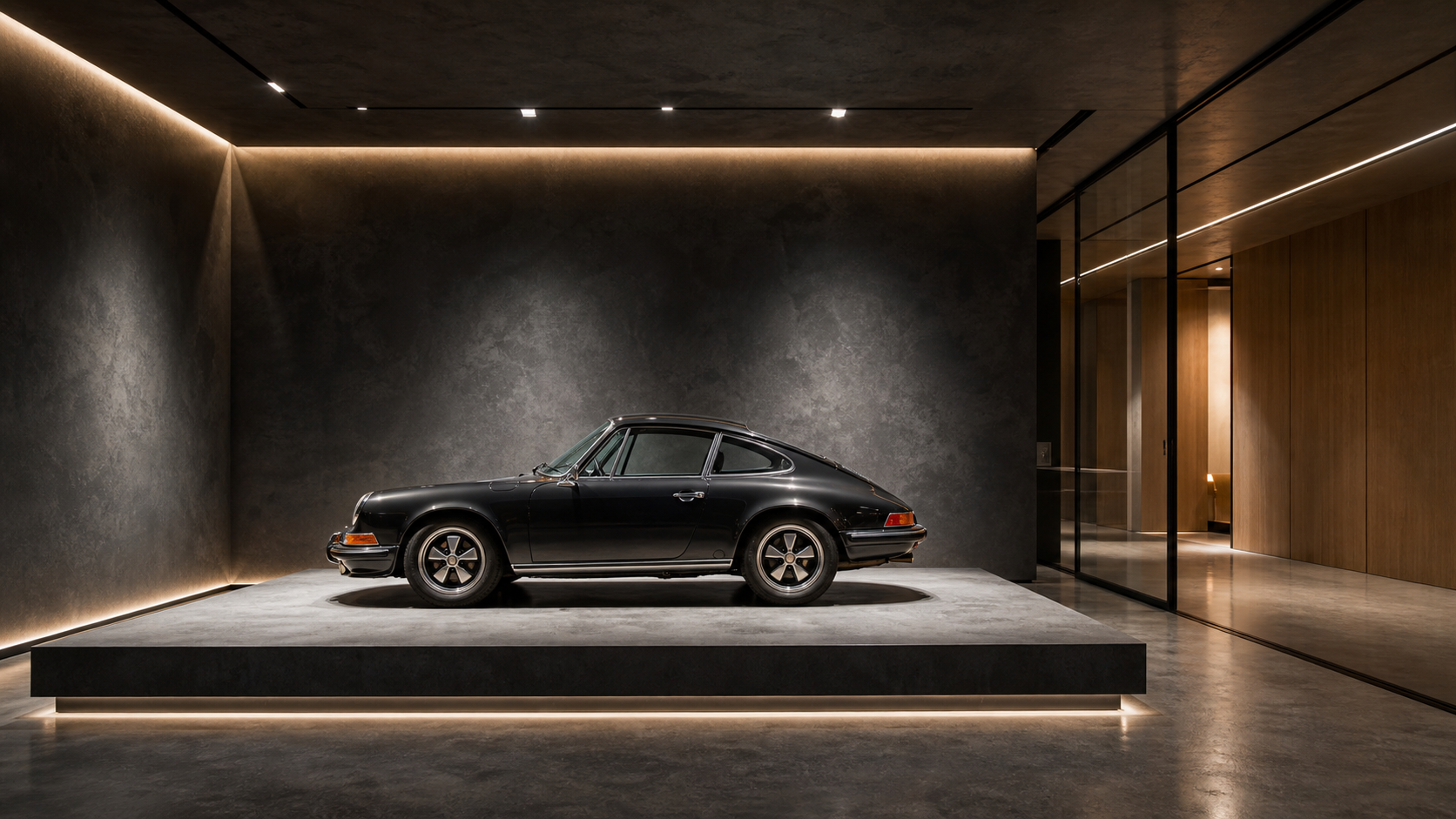

The Gallery Garage: One Side Display, One Side Work
A gallery garage is not a bigger garage. The move that makes it work is splitting the bay into a display half and a service half. The display half gets the polished floor, the plinth, the dark walls, and the aimed lighting. The service half gets the compressor, the lift, the floor drain, the utility sink, and the storage wall — behind a partition or a change of finish that keeps it out of the shot.
Height and slab
Height is the constraint people forget. A two-post lift wants roughly 12 to 14 feet clear, and that dimension has to be resolved against the floor above and the roof line long before framing. Slab flatness matters just as much — a display plinth reads as sloppy the moment it sits on a wavy pour, so flatness tolerance belongs in the documents, not in a field conversation.
The glazed wall
If you want to see the cars from inside the house, the partition is a real assembly: insulated glazing, a sealed door, and acoustic separation so a running engine or compressor does not fill the kitchen. It also usually needs a beam that lets the glass span without a post landing in the middle of the view.
Beyond Cars: Art Walls, Libraries, and Instrument Rooms

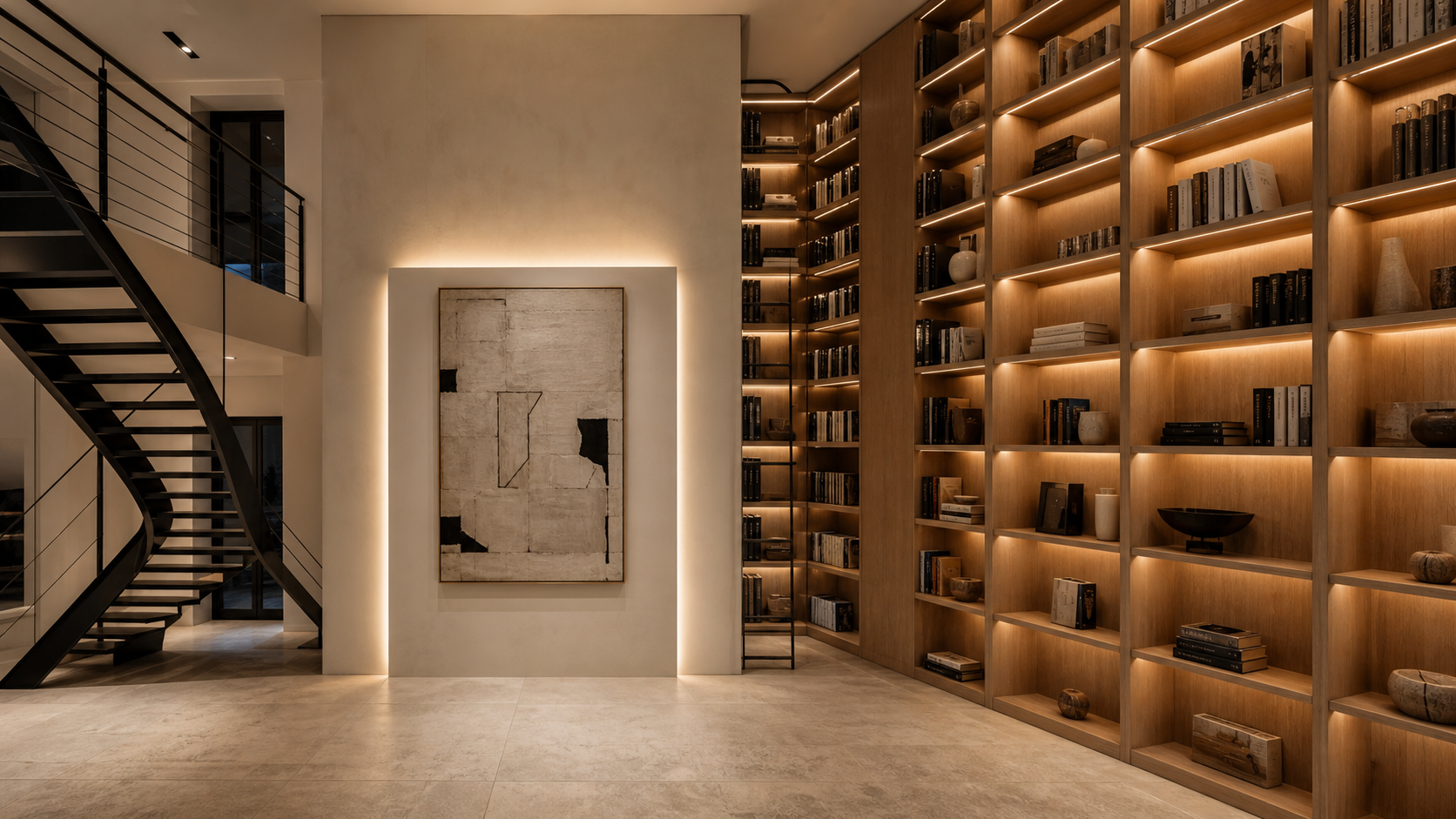

The same principles scale down. An art wall needs blank, uninterrupted plane — no switches, vents, or trim crossing it — plus a lighting track or slot set the right distance off the face so the wash is even instead of hot at the top. A library wants depth, structure for the load, and glare control on the glazing opposite the shelves.
Instrument rooms are the fussiest. A piano or a string collection cares about stable humidity and a room that is neither dead nor ringing, which means an acoustic plan and a dedicated conditioning strategy rather than a nearby supply register.
Lighting Is the Whole Trick
Display lighting inverts the normal residential formula. Rather than lighting the room evenly, we drop the ambient level and put narrow-beam, high-CRI accent light exactly where the collection is — raking across a car's body line, washing a canvas without a hot spot, grazing the spines on a shelf. Contrast is what makes an object read as valuable.

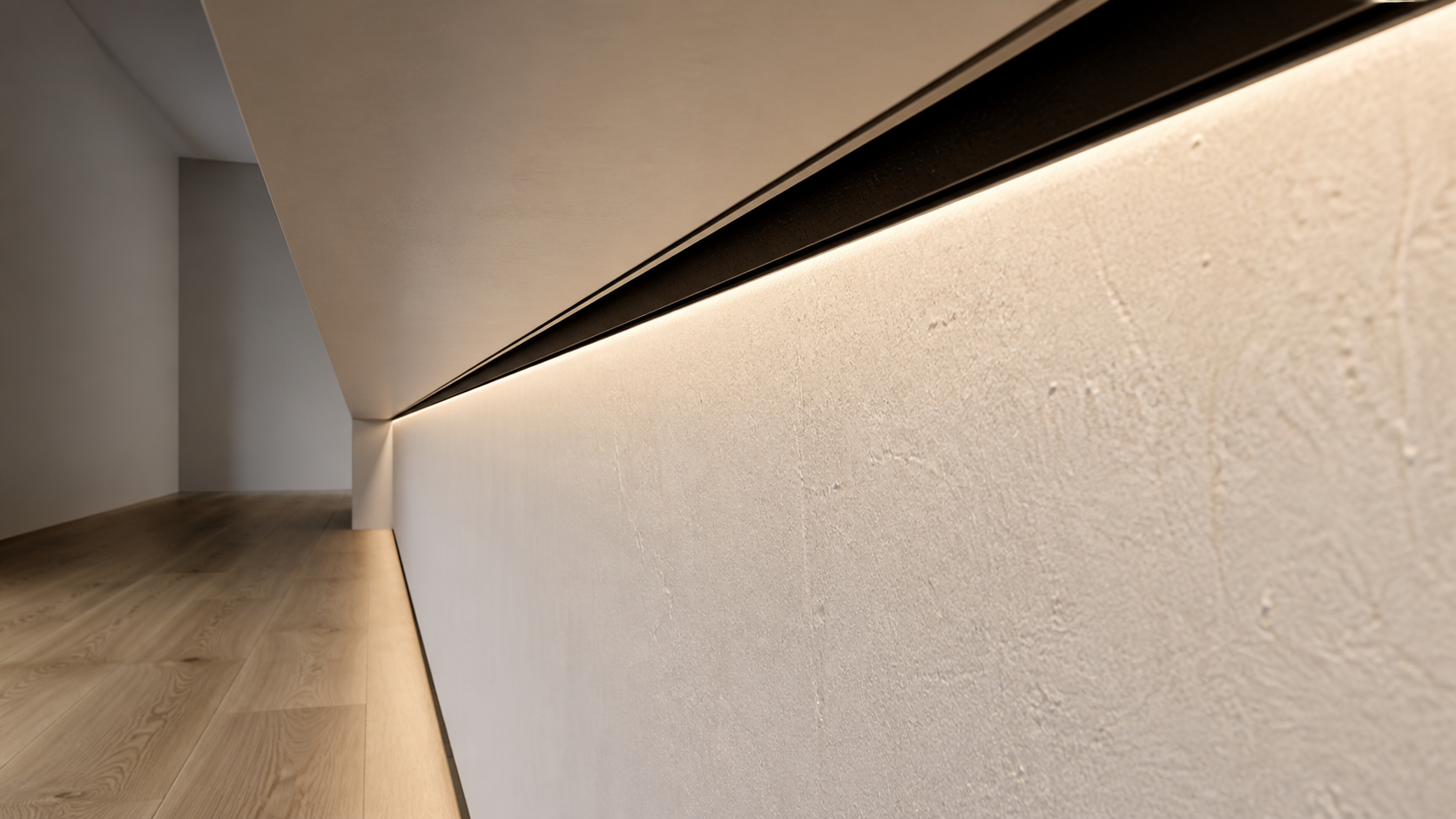

Two practical rules. Hide the fixtures in coves, slots, or recessed adjustable heads so the eye sees the object and not the source. And keep heat and UV off anything fragile — paper, textiles, and finishes all fade under the wrong source. If you want the full room-by-room method behind this, we covered it in our layered lighting guide.
The Houston Wrinkle: Humidity, Slabs, and Flood Elevation
Gulf Coast conditions punish loose detailing. Summer dew points mean any space held cooler or drier than the rest of the house needs vapor control on the warm side and glazing specified against local design conditions, or condensation shows up on the showpiece every humid afternoon.
Most homes here are also slab-on-grade, so there is no basement to hide a collection in — it lives on the main floor, which is exactly why these rooms became architectural in the first place. Flood elevation is the other hard constraint: it drives how low a garage floor can sit, and on a lot with real flood risk it can rule out putting anything irreplaceable at grade at all.
Getting the Sequencing Right
Nearly every regret on these rooms traces back to timing. The structural depth for a lift, the closet for dedicated equipment, the beam that lets a glass wall span cleanly — all schematic-design calls. Once the drywall is up, the affordable version of the decision is gone.
- Schematic design: fix the sightline, the room's place in the plan, and the structural and mechanical reservations.
- Design development: lock glazing, plinth or shelving layout, lighting positions, and equipment locations.
- Construction documents: detail the envelope, seals, drainage, slab tolerance, and every fixture aiming angle.
- Construction: mock up the lighting before finishes go on — one evening of aiming saves a rebuild.
If you are weighing one of these rooms, raise it at the first meeting rather than the fifth. Start a conversation with the studio and we will tell you honestly whether the sightline you want is worth what the structure costs.
Frequently Asked Questions
How much extra space does a gallery garage need?
Plan on roughly a third more floor area than a standard bay per displayed vehicle, so there is walking room on all sides and a service zone that is not sharing space with the display. Height matters more than footprint if a lift is in the picture.
Can a collection room be added after the house is built?
Sometimes, but it becomes a renovation rather than a purchase. Anything needing separate conditioning, new structure, or concealed lighting means opening finished assemblies. Planning it during design usually costs a fraction of retrofitting it.
What flooring works in a display garage?
A flat, sealed, chemical-resistant floor. Polished or sealed concrete and high-build epoxy both work well; large-format porcelain works if the substrate is flat and the tile is rated for vehicle loads. The real spec is the slab underneath it.
Is a collection room a good investment?
Treat it as a lifestyle decision first. These rooms are personal, and the next owner may not collect what you collect. What holds value is the quality underneath — sound structure, a well-built envelope, and lighting infrastructure that can be repurposed for a different use.
